Hikvision
Hikvision IP kaamera komplekt DS-2XS6A47G1-LS 4MP 2.8mm toru valge

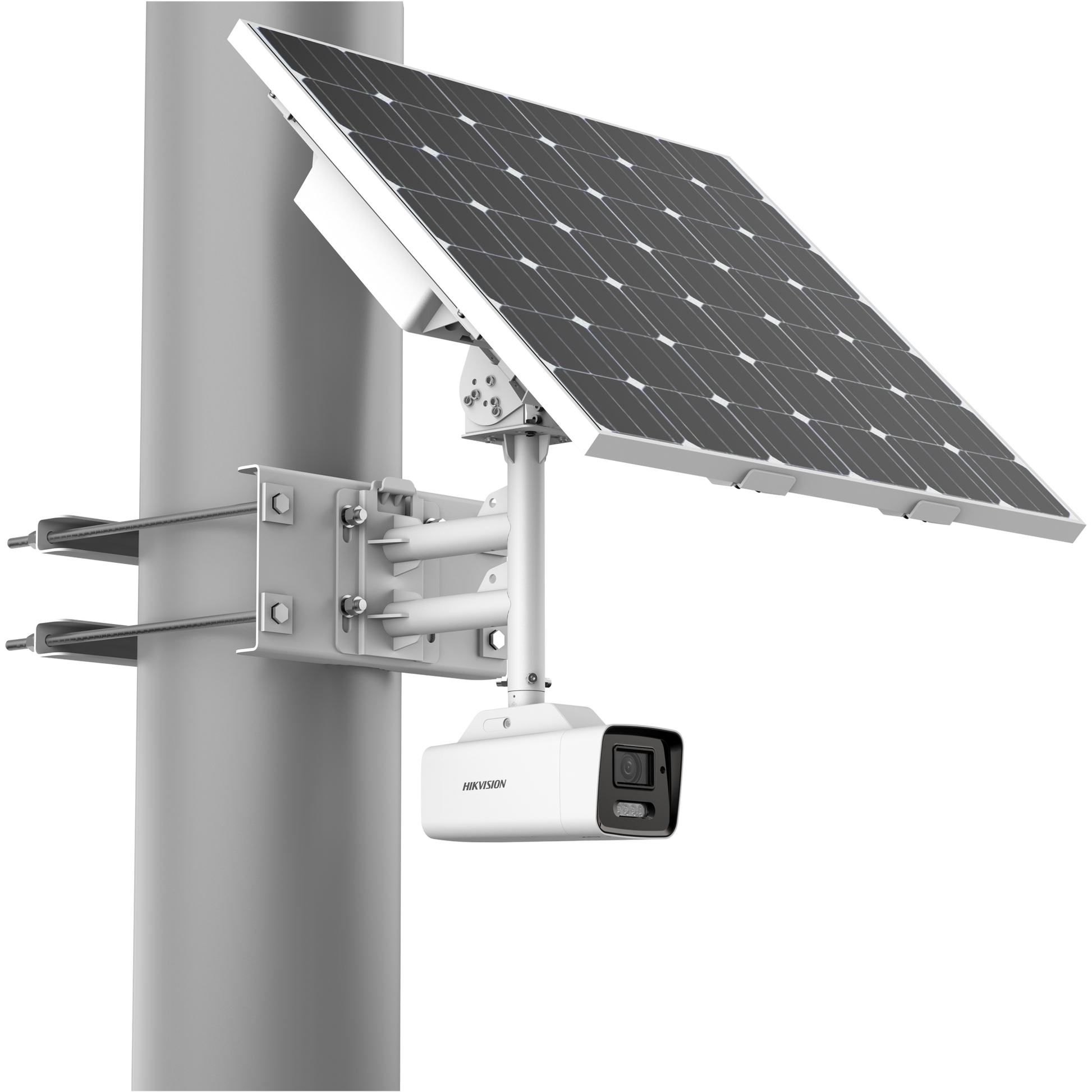

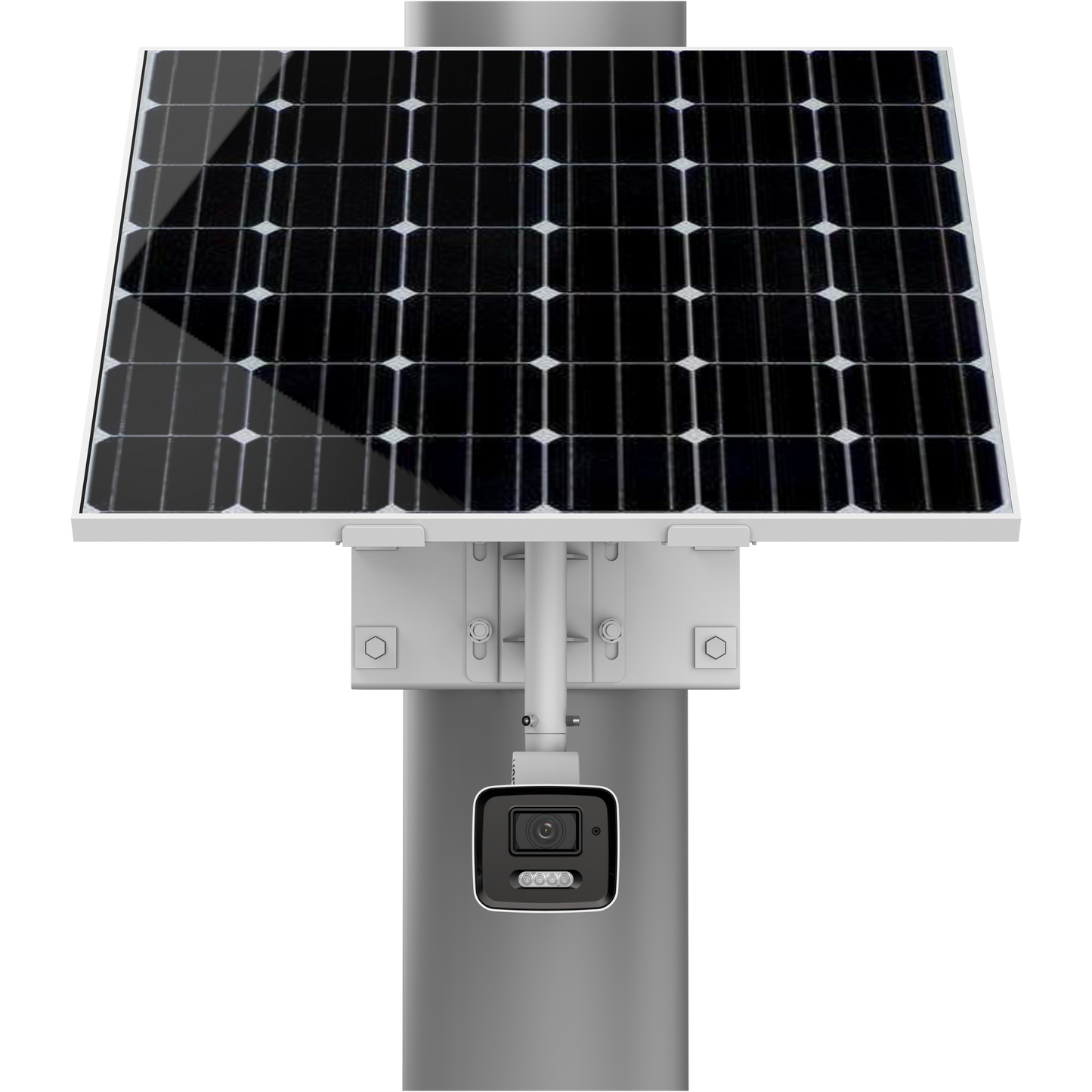

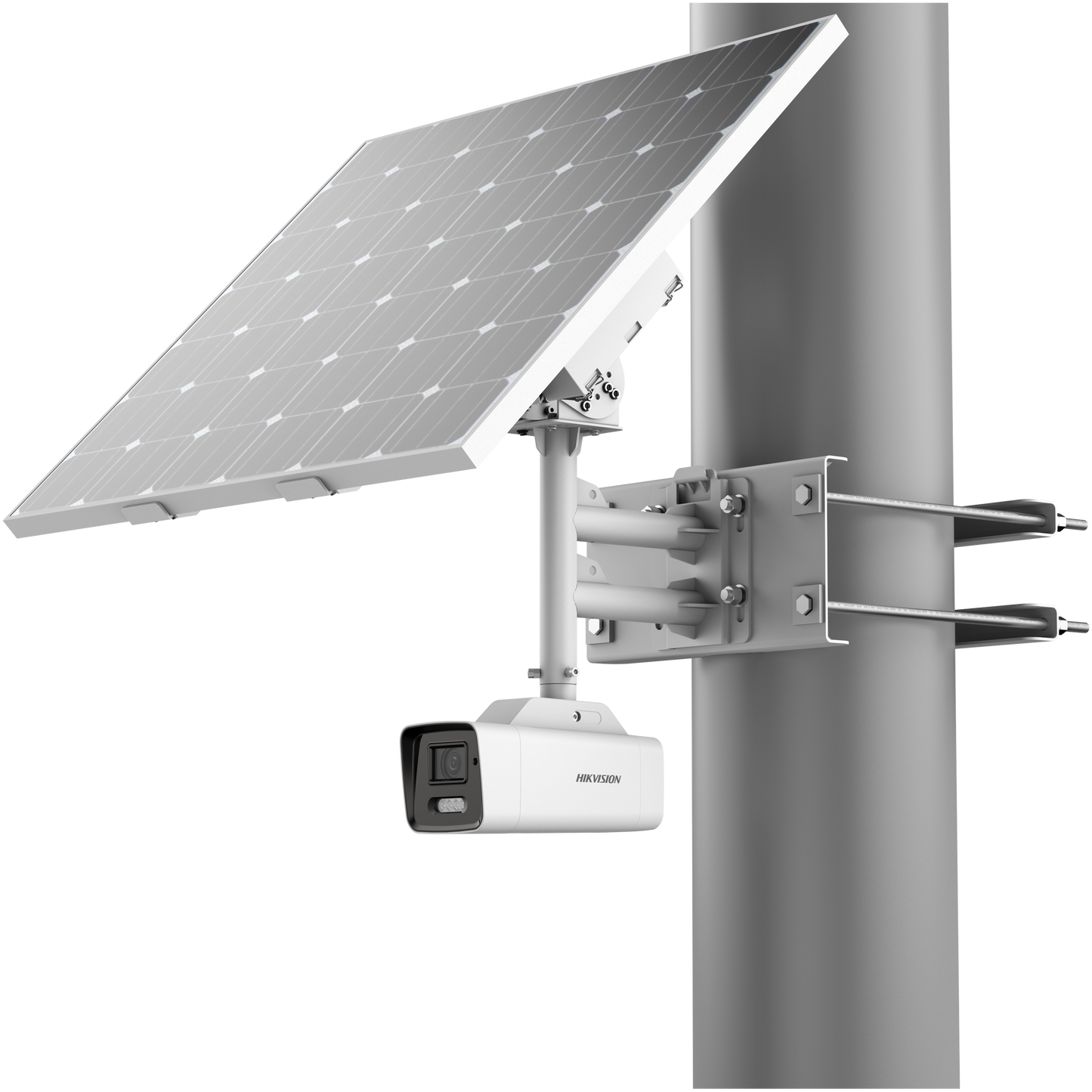

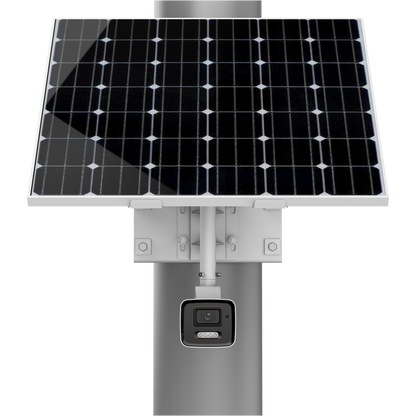

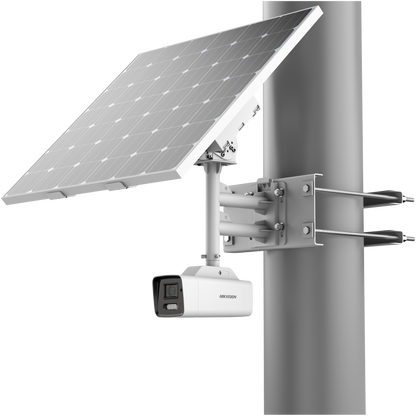

Hikvision IP kaamera komplekt DS-2XS6A47G1-LS 4MP 2.8mm toru valge
Tavahind
€2.907,86 EUR
Tavahind
Soodushind
€2.907,86 EUR
Käibemaks sisaldub hinnas.
Kogus
Järeletulemise saadavust ei õnnestunud laadida
- High quality imaging with 2560 × 1440@ 15 fps resolution
- 24/7 Colorful imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 80 W photovoltaic panel, 360 WH chargeable lithium battery
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- Camera: Water and dust resistant (IP67)
- Built-in 64 GB eMMC storage
Tehnilised andmed
Base Attributes
Brand Hikvision Manufacturer Code DS-2XS6A47G1-LS/C36S80(2.8mm) Net Weight 14.4 Gross Weight 35.37 Key Parameter
Case type Bullet Resolutsioon 4 MP Lens Type Fixed Lens Low-Light Imaging ColorVu Illumination Distance 21-50m Wireless Network 4G Storage Type SD Card, EMMC AI Perimeter Protection Local Output N/A Camera
Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light Camera Module
WDR 130 dB Lens
Focal Length & FOV 2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9°
4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°Iris Type Fixed Illuminator
Supplement Light Type White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes Video
Video Bit Rate 32 Kbps to 8 Mbps Main Stream 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)Bit Rate Control CBR/VBR Network
Simultaneous Live View Up to 6 channels Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets User/Host Up to 32 users. 3 user levels: administrator, operator and user Client Hik-Connect (proactive mode also supports), Hik-central Professional Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3 Mobile Communication
Frequency DS-2XS6A47G1-LS/C32S80:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: 850/900/1800MHz
DS-2XS6A47G1-LS/C32S80 (US):
LTE-FDD: Band2/4/5/12/13/66/71
WCDMA: Band2/4/5
DS-2XS6A47G1-LS/C32S80 (LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66
WCDMA: Band1/2/3/4/5/8
GSM: 850/900/1800/1900MHz
DS-2XS6A47G1-LS/C32S80 (JP):
LTE-TDD: Band41
LTE-FDD: Band1/3/8/11/18/19/21/26/28
WCDMA: Band1/6/8/19SIM Card Type MicroSIM Standard DS-2XS6A47G1-LS/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A47G1-LS/C32S80 (US): LTE-FDD/WCDMA
DS-2XS6A47G1-LS/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A47G1-LS/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMAImage
Day/Night Switch Day, Night, Auto, Schedule SNR ≥ 52 dB Interface
Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibriumOn-Board Storage Built-in memory card slot, support microSD card, up to 256 GB;
Built-in 64 GB eMMC storageAlarm 1 input(s), 1 output(s) (max. 12 VDC, 1 A) Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error) Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection General

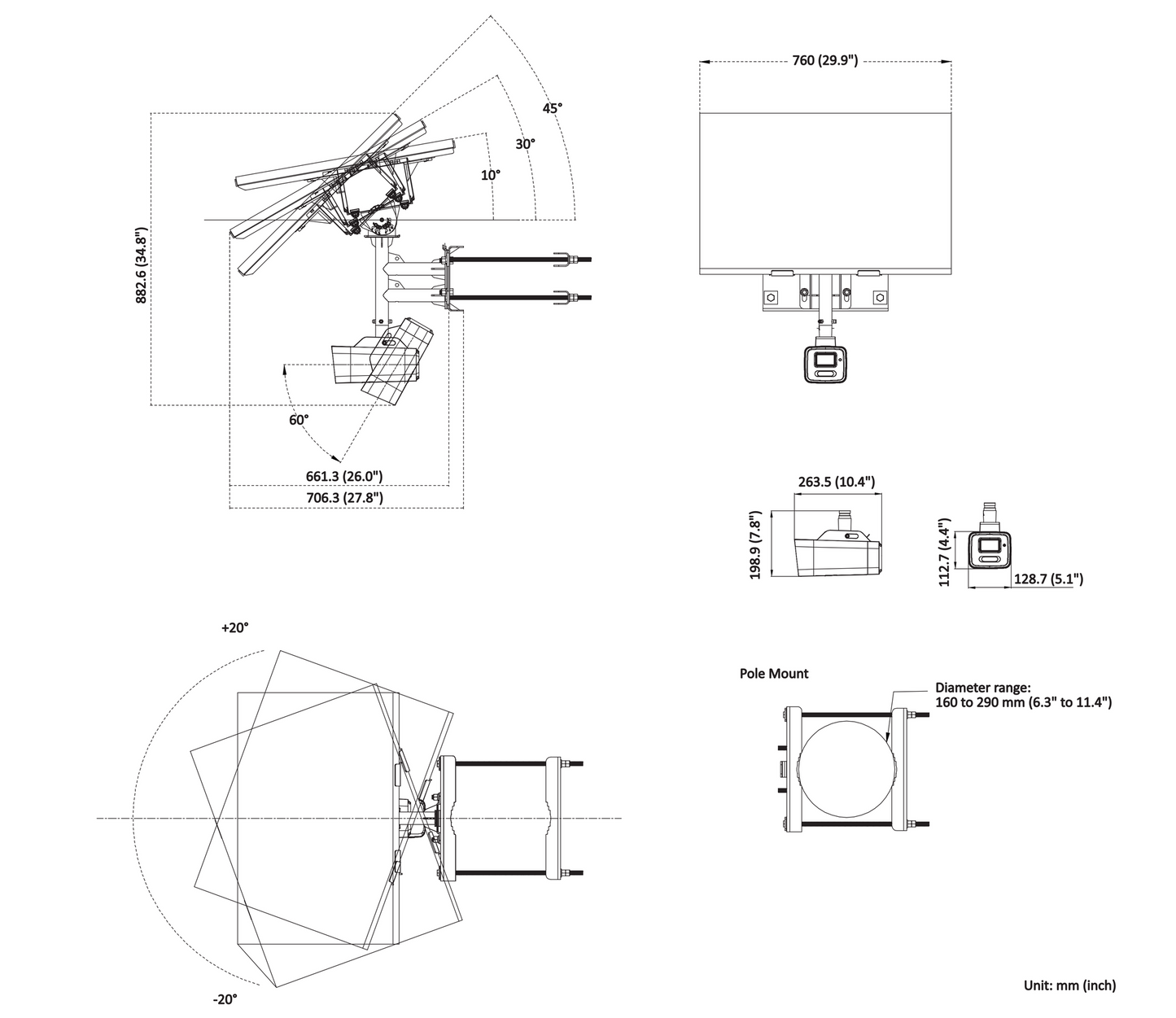

General Function Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Storage Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC Startup and Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) Dimension 882.6 mm × 706.3 mm × 760 mm (34.8" × 27.8" × 29.9") (Max. size of the camera after it is completely assembled) Approval
Protection Camera: IP67 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance Safety CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1)Battery
Battery Life More than 500 cycles Battery Voltage 10.8 V Capacity 360 WH (90 WH for each battery) Cycle Lifetime Proactive mode: 5 days, Standby mode: 80 days *in cloudy/rainy days (25 °C) Max. Output Voltage 12.6 V
