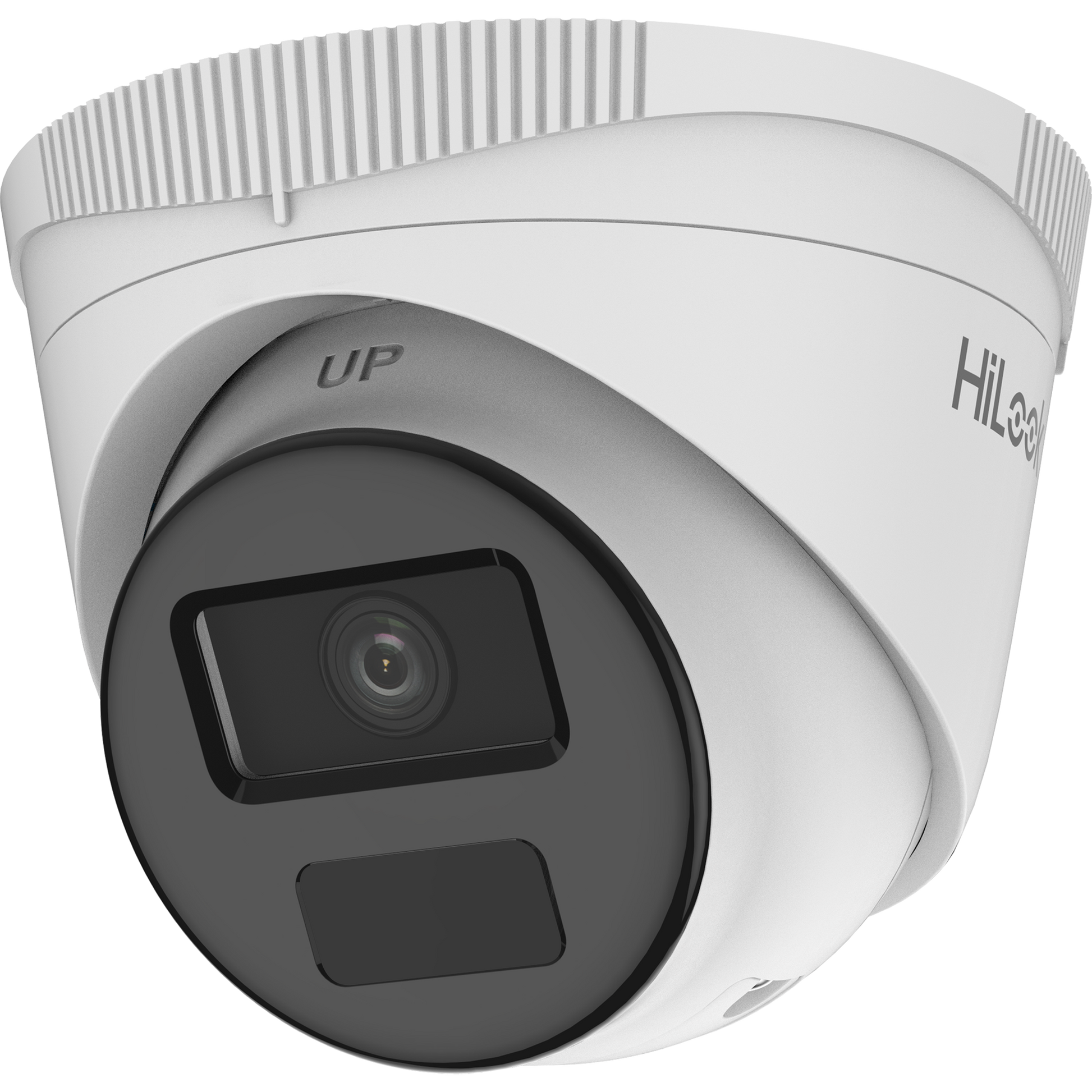

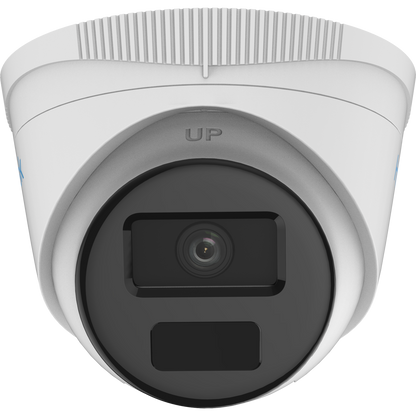

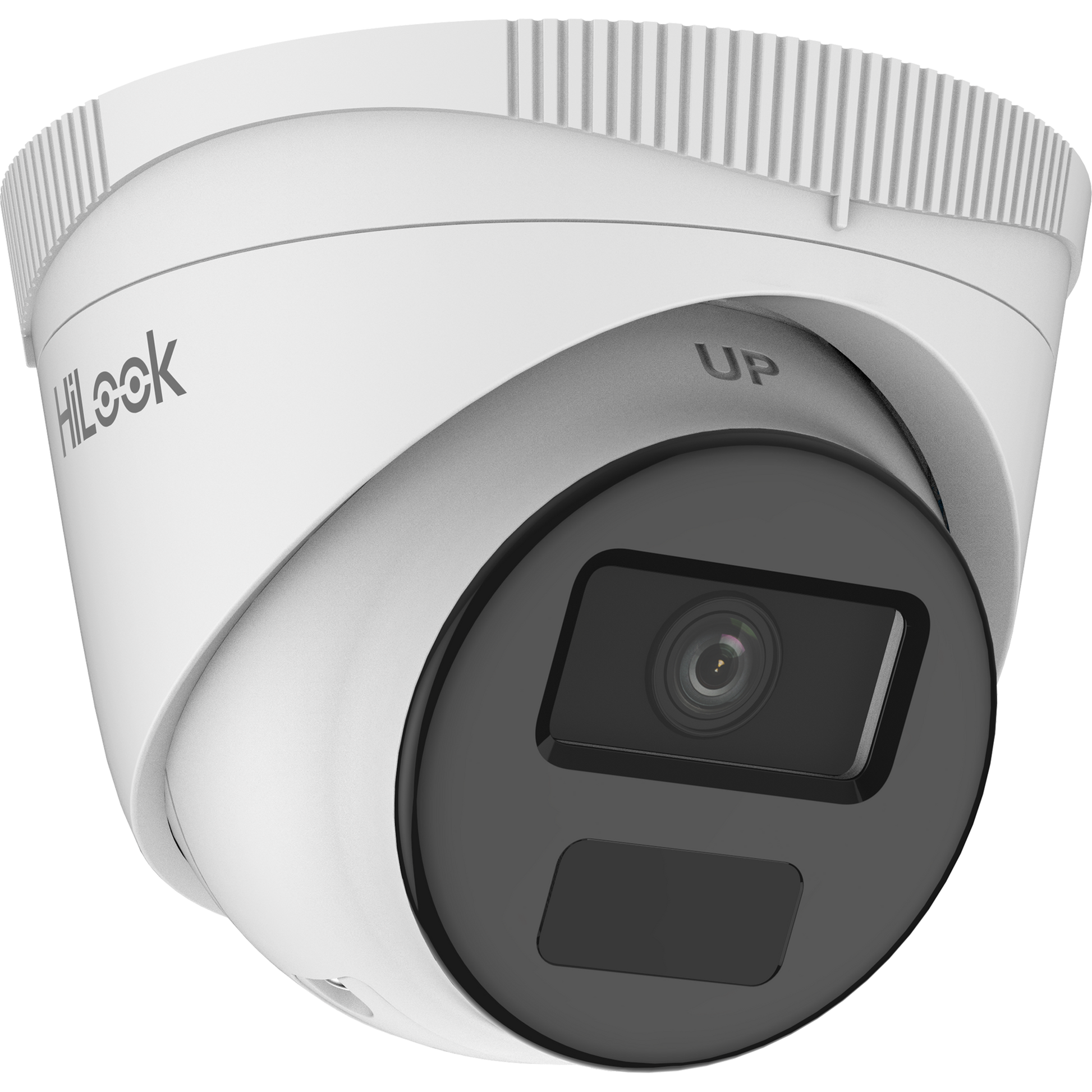

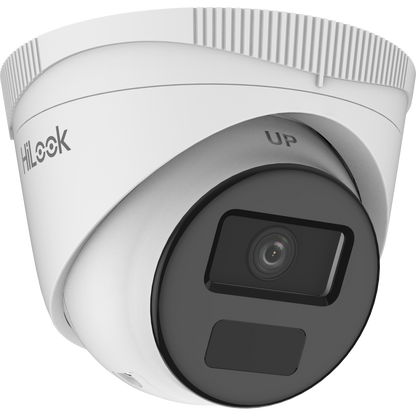

Hilook IP kaamera IPC-T241H-C f2.8mm 4MP kuppel valge
Hilook IP kaamera IPC-T241H-C f2.8mm 4MP kuppel valge
Tavahind
€52,00 EUR
Tavahind
Soodushind
€52,00 EUR
Käibemaks sisaldub hinnas.
Kogus
Järeletulemise saadavust ei õnnestunud laadida
- High quality imaging with 4 MP resolution
- Easy installation with Power over Ethernet (PoE) technology
- Water and dust resistant (IP67)
Tehnilised andmed
Base Attributes
Brand Hilook Manufacturer Code IPC-T241H-C(2.8mm) Net Weight 0.275 Gross Weight 0.453 Key Parameter
Case type Turret Resolutsioon 4 MP Lens Type Fixed Lens Illumination Level Normal Wireless Network N/A Storage Type N/A IR Distance 0-20m Camera
Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens
Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°
4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°Iris Type Fixed Depth of Field 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞ Illuminator
Supplement Light Type IR Supplement Light Range Up to 20 m Smart Supplement Light Yes Video
Video Bit Rate 32 Kbps to 8 Mbps Main Stream 50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
24 fps (1920 × 1080, 1280 × 720)Bit Rate Control CBR,VBR Network
Simultaneous Live View Up to 6 channels Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS User/Host Up to 32 users 3 user levels: administrator, operator, and user Client iVMS-4200 Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address) Image
Day/Night Switch Day,Night,Auto,Schedule SNR ≥ 52 dB Event
Basic Event Motion detection (support alarm triggering by specified target type (human)), exception General

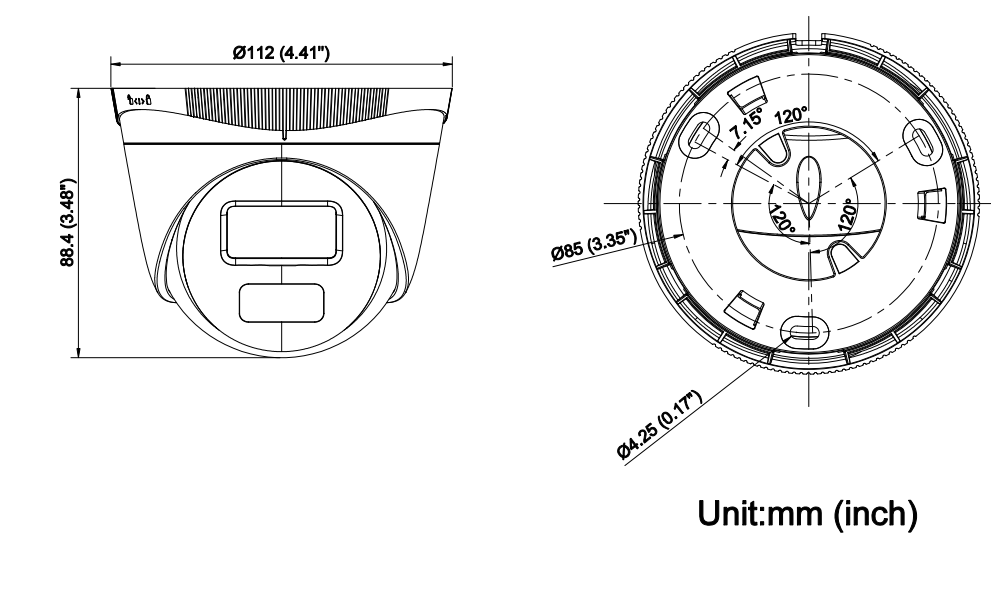

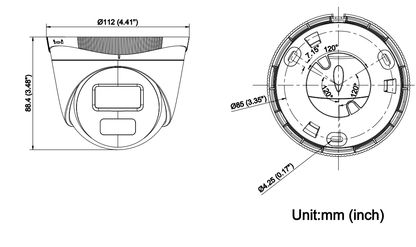

General Function Heartbeat,anti-banding,mirror,password protection,password reset via email Storage Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing) Power Supply DC12V&PoE Startup and Operating Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing) Dimension Ø112 mm × 88.4 mm (Ø4.4" × 3.5") Approval
Protection IP67: IEC 60529-2013 Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
